High-Frequency RF Coaxial Connector Selection Guide: Precise Matching to Unlock New Heights in Signal Transmission
In fields such as communications, test and measurement, and aerospace, high-frequency RF coaxial connectors serve as the "critical bridge" ensuring stable signal transmission. A precisely selected connector can minimize signal loss to the greatest extent and enhance system performance; improper selection may not only cause equipment failures but also increase long-term maintenance costs. Therefore, mastering the scientific selection method of high-frequency RF coaxial connectors is crucial for every practitioner.
I. Core Selection Factors: From "Parameter Matching" to "Scenario Adaptation"
Selecting high-frequency RF coaxial connectors is by no means a simple parameter comparison. Instead, it is necessary to comprehensively consider multi-dimensional factors around system requirements to ensure each choice accurately meets actual application scenarios.
1. Frequency: The "Speed Ceiling" of Signal Transmission
Frequency is the primary prerequisite for selection. Different connectors have significantly different operating frequency ranges, which directly determine whether they can meet the signal transmission needs of the system. For example:
BNC connectors, with stable performance, are widely used in low-frequency scenarios from DC to 4GHz, commonly found in monitoring equipment and small communication terminals.

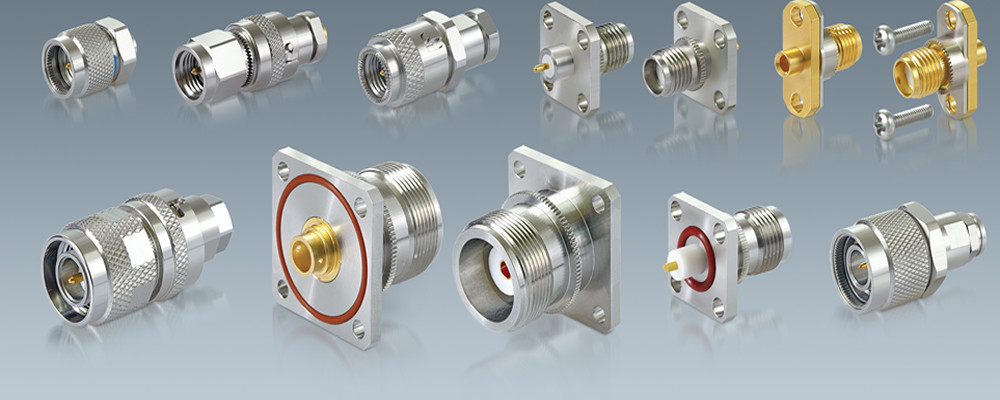

SMA connectors are more flexible, operating below 12.4GHz when paired with flexible cables and up to 26.5GHz with semi-rigid cables, making them a common choice for communication devices such as routers and base stations.

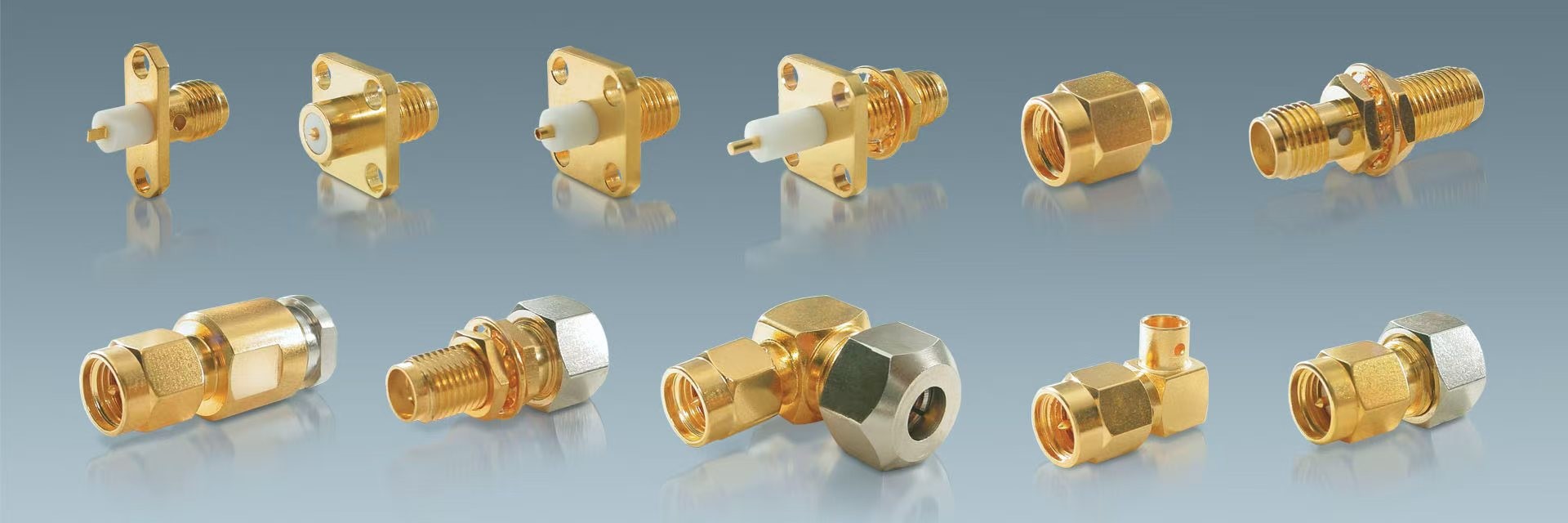

For high-frequency fields like millimeter-wave communications, 2.92mm connectors stand out, with a maximum operating frequency of 110GHz, easily meeting the high-frequency requirements of high-end test instruments and satellite communications.
During selection, it is essential to ensure the connector's frequency range fully covers the system's operating frequency to avoid signal distortion due to frequency mismatch.
2. Mechanical Structure and Connection Method: Balancing Convenience and Stability
A connector's mechanical structure (interface type) and connection method directly affect installation efficiency and shock resistance. Among common interface types:

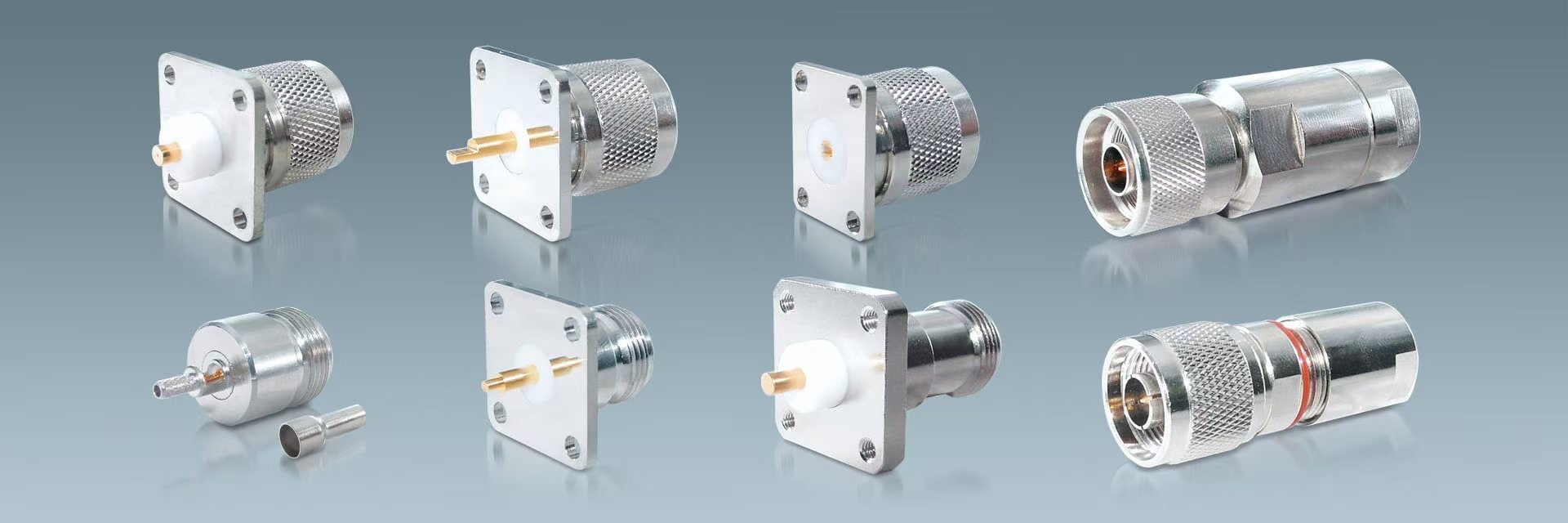

N-type connectors adopt threaded connections, featuring a robust structure, excellent shielding performance, and wide application in base stations and large communication equipment.
BNC connectors have a bayonet design, enabling quick insertion and removal without tools, suitable for scenarios requiring frequent disassembly but with relatively weak shock resistance.
SMB connectors utilize a plug-in structure, being compact and easy to connect, favored by consumer electronics and medical equipment.
Different connection methods have their own advantages and disadvantages:
Threaded connections (e.g., N-type, SMA) are secure and shock-resistant, suitable for complex environments such as outdoor and industrial settings.
Bayonet connections (e.g., BNC) offer fast operation and time savings.
Push-on connections (e.g., SMB, MMCX) are extremely convenient, adapting to small devices with high requirements for installation space and speed.
Selection should balance convenience and stability based on the equipment's operating environment and installation frequency.
3. Size and Weight: Adapting to the Equipment's "Spatial Code"
As equipment trends toward miniaturization and lightweight design, the size and weight of connectors have become key considerations. Connectors are classified into four categories based on size:
Standard type (e.g., UHF, N-type): Large in size with high mechanical strength, suitable for large industrial equipment and outdoor base stations with low space constraints.
Small size (e.g., BNC, TNC): Balancing performance and compactness, commonly used in small and medium-sized communication terminals and test instruments.
Ultra-small size (e.g., SMA, SMB, 3.5mm): Compact, serving as the "standard configuration" for mobile phones, satellite communication modules, and portable instruments.
Micro size (e.g., 2.92mm, 2.4mm, 1mm): Extremely thin, adapting to precision instruments such as millimeter-wave devices and micro-sensors, playing an important role in aerospace and high-end medical fields.
Selection must accurately match the internal space of the equipment, avoiding installation difficulties due to oversized connectors or performance sacrifices from excessive pursuit of miniaturization.
4. Materials and Plating: Dual Guarantee of Durability and Conductivity
A connector's materials and plating directly affect its service life, conductivity, and corrosion resistance.
Shell materials: Mostly copper, stainless steel, and other metals, providing good shielding performance against external electromagnetic interference while ensuring sufficient mechanical strength to withstand daily insertion/removal and environmental impacts.
Inner conductor: Primarily high-purity copper, ensuring smooth current transmission and reducing signal loss.
Insulation material: Polytetrafluoroethylene (PTFE) is preferred for its low loss and high insulation properties, effectively preventing signal leakage and adapting to high-frequency scenarios.
In terms of plating:
Center conductors are often gold-plated or silver-plated: Gold plating offers low resistance and corrosion resistance, maintaining stable performance even after long-term use, suitable for military products and aerospace equipment; silver plating provides superior conductivity but is prone to oxidation, used in commercial equipment sensitive to cost and operating in dry environments.
Outer conductor plating is mainly nickel-plated or gold-plated: Nickel plating meets basic corrosion resistance requirements, while gold plating further enhances electrical performance and resistance to harsh environments, adapting to complex scenarios such as marine and high-temperature conditions.
5. Environmental Adaptability: Hardcore Capability to Cope with Complex Scenarios
Environmental conditions vary greatly across different application scenarios, requiring connectors to have corresponding environmental resistance.
For high-temperature environments such as near industrial high-temperature furnaces and aerospace engine peripheries, connectors with a wide operating temperature range (e.g., -65℃~200℃) should be selected to avoid material deformation and performance failure due to high temperatures.
For harsh environments with humidity, dust, and salt spray (e.g., outdoor base stations, marine equipment), connectors with IP67 or IP68 protection levels are preferred to prevent moisture and impurities from entering and ensure long-term stable operation.

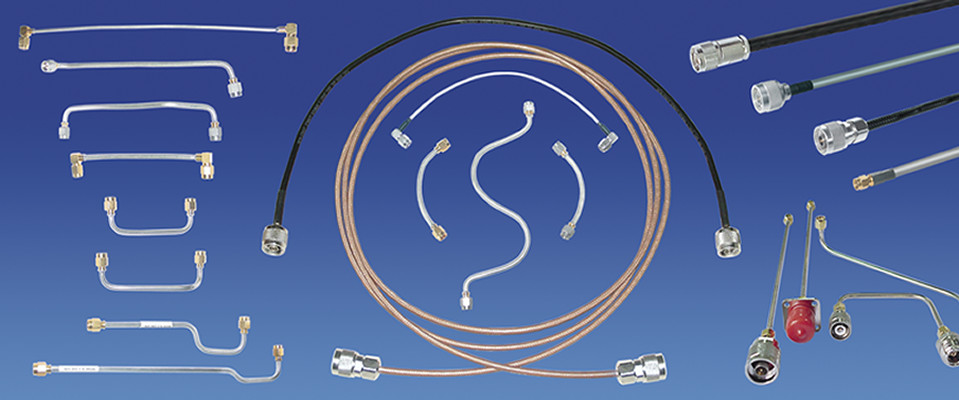

6. Cable Matching and Reliability: Impeccable Signal Transmission
The matching degree between connectors and cables directly determines signal transmission quality.
First, ensure the connector is compatible with the cable type; for example, SMA connectors perfectly match common cables such as RG316 and RG405.
Second, the cable outer diameter must be consistent with the connector's clamping range to avoid poor contact due to size mismatch.
Most importantly, the cable impedance must match the connector impedance (commonly 50Ω, 75Ω); otherwise, signal reflection will occur, increasing loss.
Regarding reliability and service life, connectors of different standards vary significantly:
Military-standard connectors (e.g., manufactured to MIL-C-39012) adopt all-copper components, PTFE insulation, and internal/external gold plating, supporting thousands of insertions and removals with stable and reliable performance, making them the "first choice" for aerospace and military equipment.
Commercial standard connectors are more cost-effective but less reliable, supporting hundreds of insertions and removals, suitable for consumer electronics and household equipment with low service life requirements.
II. Quick Selection Reference: Frequency and Size Comparison for Rapid Target Locking
To help quickly screen suitable connectors, we have compiled the maximum operating frequency, size, and core application scenarios of common connectors for on-demand matching:
Connector Type
Maximum Operating Frequency
Size
Core Application Scenarios
N-type
11GHz
Standard
Base stations, large communication equipment, outdoor instruments
BNC
4GHz
Small
Monitoring equipment, small communication terminals, teaching instruments
TNC
11GHz
Small
Vehicle-mounted communications, industrial control equipment
SMA
18GHz
Ultra-small
Routers, satellite communication modules, portable test instruments
SMB
4GHz
Ultra-small
Consumer electronics, medical equipment, Bluetooth modules
SMC
10GHz
Ultra-small
Automotive electronics, small sensors
3.5mm
34GHz
Ultra-small
High-end test instruments (e.g., spectrum analyzers)
2.92mm (K-type)
40GHz
Micro
Millimeter-wave communications, aerospace testing
2.4mm
50GHz
Micro
High-frequency signal processing, satellite communications
1.85mm
60GHz
Micro
Millimeter-wave radar, high-end medical equipment
1mm
110GHz
Micro
Extremely high-frequency test instruments, quantum communications
III. Selection Rhyme: Easily Grasp Core Logic
High-frequency selection has a trick: first check the frequency to determine the range;
Match the mechanical structure to the scenario, ensuring both convenience and stability;
Adapt the size to the equipment type, with small and micro sizes being exquisite;
Materials and plating resist the environment, no worries about humidity and high temperatures;
Cable impedance must be consistent for lossless signal transmission;
Reliability and service life depend on standards, choosing military or commercial as needed;
Refer to the table for quick matching, achieving precise selection with high efficiency!
Whether it is base station construction in the communications field, instrument calibration in test and measurement, or equipment research and development in aerospace, the selection of high-frequency RF coaxial connectors directly relates to project success. Mastering scientific selection methods and choosing suitable connectors can ensure more stable signal transmission and more reliable equipment operation, safeguarding technological innovation and development in various industries!
The TNC Connector: A Reliable Standard for RF Applications
The TNC connector, short for Threaded Neill–Concelman, represents one of the most robust and reliable solutions within the RF coaxial connector family. Unlike bayonet-style connectors, the TNC employs a threaded coupling mechanism, which ensures a secure fit even in environments subject to vibration, mechanical stress, and harsh weather conditions. This design advantage makes it particularly well-suited for applications where signal stability and mechanical durability are paramount.
The TNC Male RF Coaxial Connector – Straight Type, offered by Sipu RF, is engineered in compliance with internationally recognized standards, including MIL-C-39012 and IEC 60169-17. Such compliance guarantees not only reliable electrical performance but also interchangeability with comparable international products, which is a critical factor in global supply chains. The connector supports a broad frequency range extending from DC up to 11 GHz, thereby meeting the requirements of both traditional communication systems and modern high-frequency applications.
From a technical perspective, the connector maintains a characteristic impedance of 50 ohms and demonstrates excellent electrical stability with a VSWR of 1.3 or less. It also withstands dielectric voltages of up to 1500 V and provides insulation resistance greater than 5000 MΩ, ensuring safety and performance in demanding conditions. The insertion loss remains low, measured at no more than 0.06√F (GHz) dB, which is essential for minimizing signal degradation over extended frequencies. Mechanically, the connector is built to endure a minimum of 500 mating cycles, reflecting its suitability for both laboratory testing and field deployment.
The choice of materials further enhances performance and longevity. The center conductor is made of brass with gold plating to optimize conductivity and reduce corrosion risk, while the insulator employs PTFE for its excellent dielectric properties and thermal stability. The outer conductor is nickel-plated brass, offering mechanical strength and resistance to wear, and a silicon rubber sealing ring ensures environmental protection for outdoor use.
Practical applications of the TNC connector extend across mobile communication equipment, antennas, navigation systems, radar technologies, and general RF systems where reliability cannot be compromised. Whether in civilian telecommunications or defense-grade installations, the TNC connector continues to serve as an industry standard for stable, threaded RF connections.
Sipu RF is committed to providing both standard and customized TNC solutions. Our product range includes straight and right-angle designs, plug and jack variations, and reverse polarity configurations to suit diverse engineering needs. With certification under ISO9001, RoHS, and CE, our connectors combine global quality standards with flexible manufacturing capabilities.
For engineers and procurement professionals seeking dependable RF connectivity, the TNC connector remains a proven and versatile choice. At Sipu RF, we strive to ensure that every connector not only meets but exceeds expectations for performance, durability, and compatibility in today’s demanding RF environments.
Learn more at www.connector-rf.com | sipu@connector-rf.com
Small Connector, Big Performance — Discover Our J30J Micro-D
When space is limited but performance cannot be compromised, the J30J Micro-D connector delivers exceptional reliability and density for precision electronics. Designed for demanding environments, it ensures consistent performance in applications where every millimeter counts.
The J30J Micro-D stands out for its compact, high-density micro-rectangular form, offering configurations with up to 51 pins. It provides excellent resistance to shock and vibration, making it ideal for mission-critical applications. Gold-plated contacts maintain secure, low-loss connections, ensuring signal integrity over time. For maximum versatility, the J30J supports flexible cable assemblies and customization, allowing engineers to tailor solutions to their specific needs. It is also compliant with MIL-DTL-83513 standards, ensuring compatibility for critical systems (non-defense use).
This connector has become a trusted choice across multiple industries. It is widely used in industrial automation, aerospace-grade electronics, test and measurement systems, scientific instruments, and robotics, as well as in embedded systems. Whether you are developing a laboratory device, a drone control module, or a mission-critical embedded platform, the J30J Micro-D offers the performance and reliability needed to succeed.
At Sipu RF, we provide not just connectors, but complete connector and cable assembly solutions tailored to your application. With our engineering expertise and quality certifications, including RoHS, CE, and ISO9001, we ensure that each solution meets the highest standards.
Contact us today for samples, detailed specifications, or to discuss how the J30J Micro-D can enhance your next project. Visit us at www.connector-rf.com to explore more of our high-performance interconnect solutions.

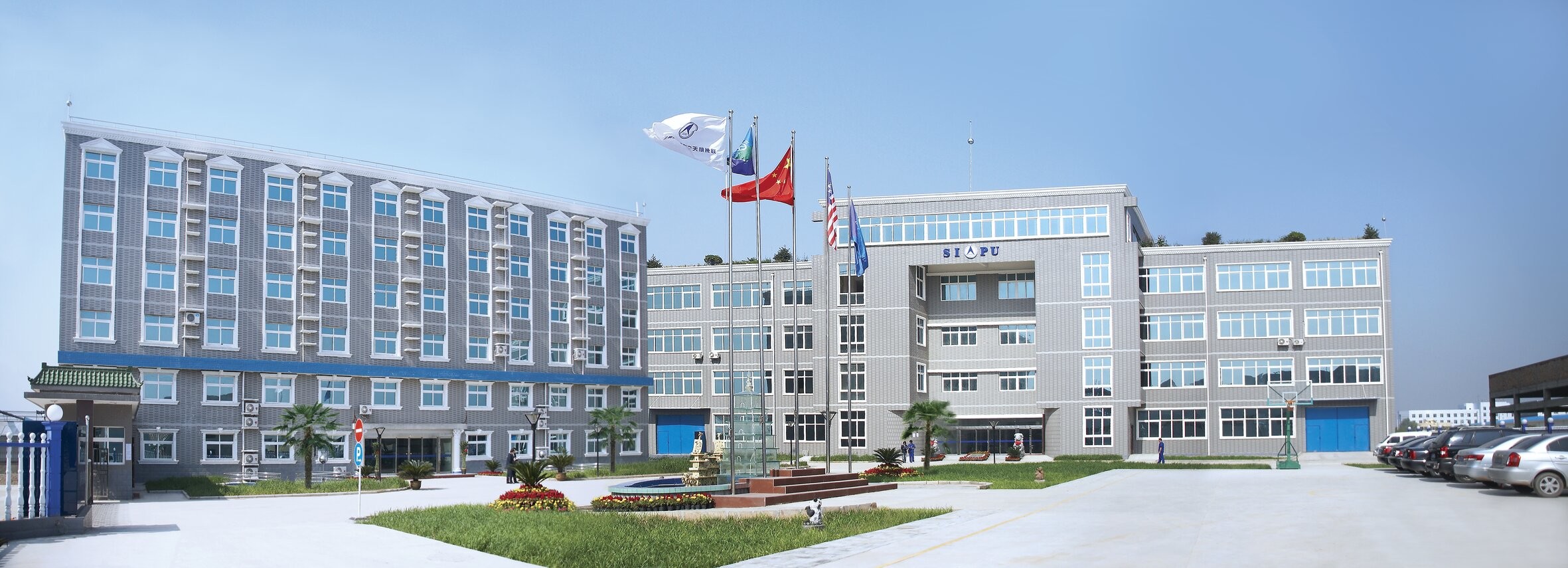

About Xi'an Sipu RF Technology Co., Ltd.
